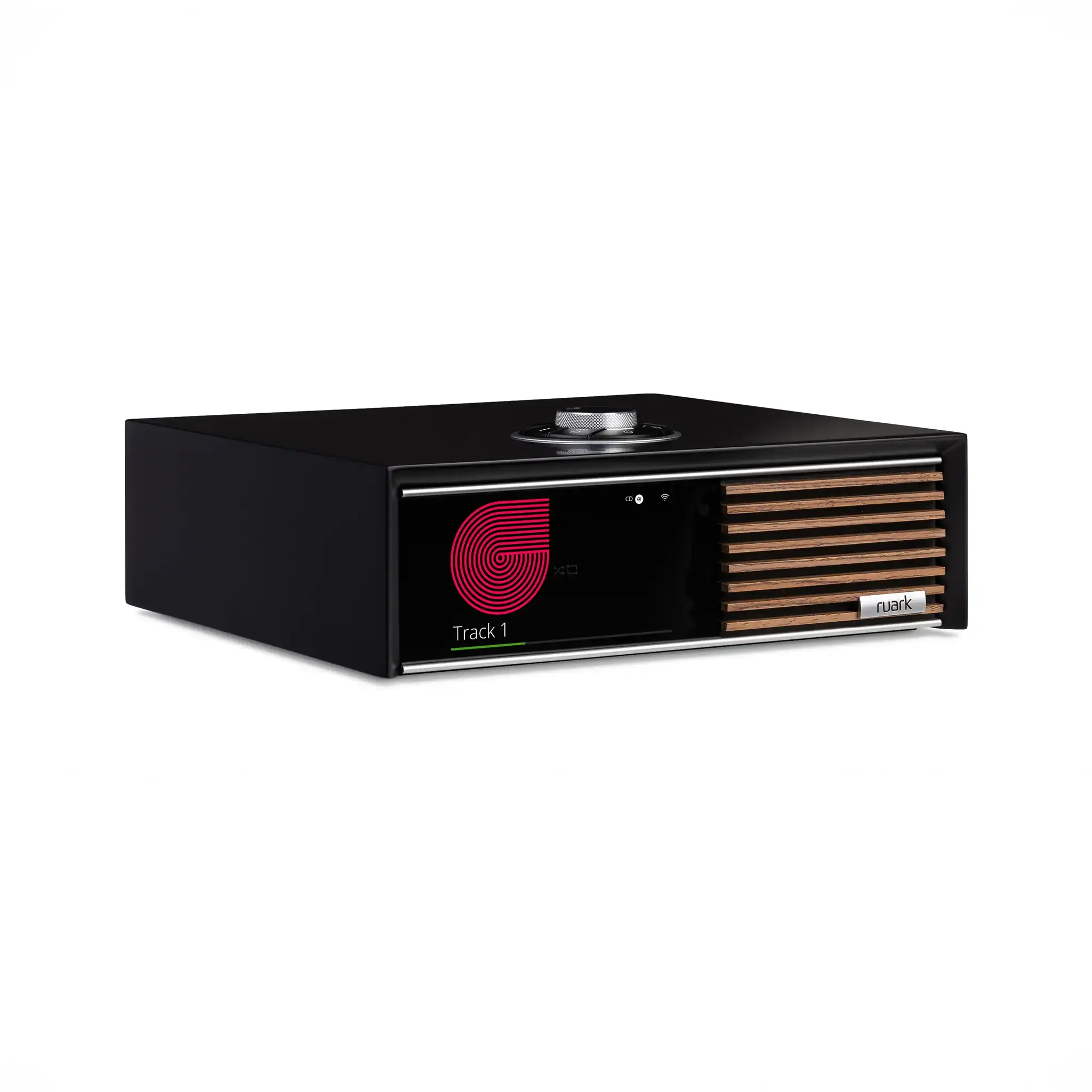

Ruark Audio R610 | Streaming Integrated Music Console

With Comprehensive Connection and Streaming Capabilities, R610 Has Been Designed and Crafted for Sound, to Get People Back to the Joy of Music

• (2x) 75W per channel Class D amplifier
• Apple AirPlay and Google Cast
• Spotify Connect and TIDAL Connect built-in
• Hi-Res music file support up to 32bit 394kHz

Designed to Perform

R610 Music Console delivers aesthetic appeal seldom seen among hi-fi components and this same devotion to detail is matched within. Powering R610 is a modern switch mode power supply, providing optimised powerlines to the system’s motherboard and latest generation digital amplifiers. With Burr-Brown DACs and audio grade components used throughout and a nominal output of 75 watts per channel, R610 is controlled and dynamic, but most importantly, it delivers a delightfully natural sound that makes music thoroughly enjoyable.

You're in Control

Ruark's RotoDial controller has been a distinctive part of their products since 2006. For 100 Series we have refined its design further and with tactile soft touch buttons and a precisely weighted control dial, it makes operating R610 a delight. Enhancing the operating experience is the crisp 5" TFT display which confirms every command, as well as showing album and station artwork in perfect clarity. Also included is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required, so you can relax and fully control R610 from afar.

Divine Connection

The R610 streaming amplifier provides all the connectivity you are ever likely to need, and with a powerful processor it is capable of handling the highest quality audio streams. With Internet Radio, Spotify Connect, Tidal Connect, Apple AirPlay and Google Cast all built in, a vast selection of music awaits to be discovered.

R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback the Ruark Compact Disc Player called R-CD100 is available. This will integrate and connect with R610 and their other 100 Series models via the USB socket on the rear. Last but not least, R610’s HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.

Specifications

• Amplifier: 2 × 75W per channel Class-D
• Frequency Response: 22Hz-22kHz +0/-3dB
• Enhancements: Stereo+, bass, treble, loudness
• DAC: Up to 32-bit/384kHz resolution
• Multiroom Capable: Via Apple AirPlay and Google Cast
• Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
• Streaming: Apple AirPlay and Google Cast
• Built-in music services: Spotify Connect and TIDAL Connect
• Supported music services: Amazon Music, BBC Sounds, Deezer, Qobuz and more
• Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
• Ethernet: RJ45 connector 10/100 Mbps
• DLNA: UPnP™ DLNA media server compatible
• CD support: CD playback via external USB CD drive (optional)
• HDMI: ARC and eARC
• Line-Input: Stereo RCA input (up to 2.3Vrms)
• Turntable Input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)
• Line-Output: Selectable Line-out/Pre-out, via stereo RCA connectors
• Subwoofer-Output: Volume related full-frequency mono RCA connector
• Optical Input: TOSLINK digital input up to 24-bit 192kHz
• USB-C: playback port
• Aerial Connector :75Ω F-type
• Product Dimensions:
  • H95 × W300 × D280mm (cabinet)
  • H107 × W300 × D280mm (with Rotodial controls)
• Product Weight: 4.1kg
• Product Power Input: 90-240VAC, 50-60Hz, 2.5A
• Power Consumption: 2.0W network standby, 8.0W idle

In the Box

• Ruark Audio R610 music console
• 3m Speaker cables
• Rechargeable Bluetooth RotoDial remote with charge cable
• Telescopic Aerial
• Aerial spanner
• Mains power lead
• User guide
